Reconstructing Interacting Hands with Interaction Prior from Monocular Images

IEEE/CVF International Conference on Computer Vision (ICCV), 2023

Binghui Zuo¹,

Zimeng Zhao¹,

Wenqian Sun¹,

Wei Xie¹,

Zhou Xue²,

Yangang Wang¹,

¹Southeast University

²Pico IDL, ByteDance

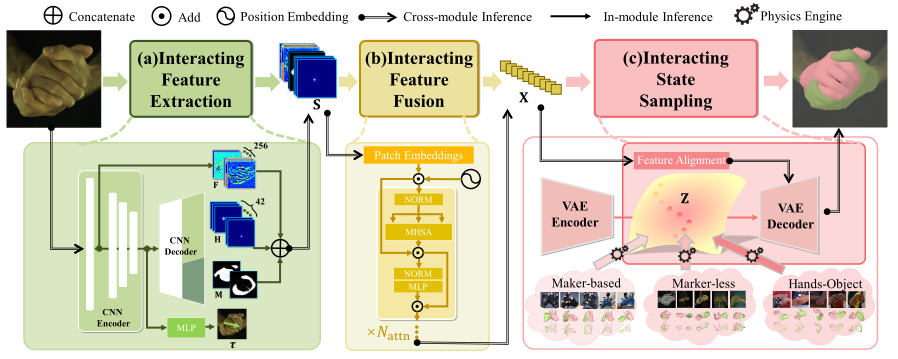

Overview of architecture.

The total pipeline consists of three stages. (a) We first design an expressive feature extraction module to extract global and local context information. Besides that, the proposed IAH adaptively maps adjacent joints with Laplacian distribution and provides more visual attention. (b) A ViT-based fusion module is designed to fuse the extracted features, which are regarded as sampling conditions to reconstruct the final result. (c) We build a powerful interaction prior with multimodal datasets and use the physics engine to make the ground truth more physically plausible

Abstract

Reconstructing interacting hands from monocular images is indispensable in AR/VR applications. Most existing solutions rely on the accurate localization of each skeleton joint. However, these methods tend to be unreliable due to the severe occlusion and confusing similarity among adjacent hand parts. This also defies human perception because humans can quickly imitate an interaction pattern without localizing all joints. Our key idea is to first construct a two-hand interaction prior and recast the interaction reconstruction task as the conditional sampling from the prior. To expand more interaction states, a large-scale multimodal dataset with physical plausibility is proposed. Then a VAE is trained to further condense these interaction patterns as latent codes in a prior distribution. When looking for image cues that contribute to interaction prior sampling, we propose the interaction adjacency heatmap (IAH). Compared with a joint-wise heatmap for localization, IAH assigns denser visible features to those invisible joints. Compared with an all-in-one visible heatmap, it provides more fine-grained local interaction information in each interaction region. Finally, the correlations between the extracted features and corresponding interaction codes are linked by the ViT module. Comprehensive evaluations on benchmark datasets have verified the effectiveness of this framework.

Results

More reconstruction results on Interhand2.6M dataset.

Dataset

We adopt the following measures to construct our dataset, named Two-hand 500K: (i) Capturing skeleton data according to the marker-based system simultaneously; (ii) Randomly combining the poses sampled from single-hand datasets.

Two-hand 500K Dataset

The rights to copy, distribute, and use the Two-Hand 500K dataset, you are being given access to are under the control of Yangang Wang, director of the Vision and Cognition Lab, Southeast University. You are hereby given permission to copy this data in electronic or hardcopy form for your own scientific use and to distribute it for scientific use to colleagues within your research group. Inclusion of images or video made from this data in a scholarly publication (printed or electronic) is also permitted. In this case, credit must be given to the publication: *Reconstructing Interacting Hands with Interaction Prior from Monocular Images*. For any other use, including distribution outside your research group, written permission is required from Yangang Wang.

Any commercial use is not allowed

. Commercial use includes but is not limited to sale of the data, derivatives, replicas, images, or video, inclusion in a product for sale, or inclusion in advertisements (printed or electronic), on commercially-oriented web sites, or in trade shows.
